THE MOST ADVANCED INTERIOR WATER STAGE IN THE WORLD
                      With built-in Water FX  -  1.450m²   -   15.600 ft²
      For highest standard underwater and water surface filming

​

6.000.000 liters of warm water : standard 30°C

5 Mio in the tank and buffers & 1 Mio extra on the studio Floor

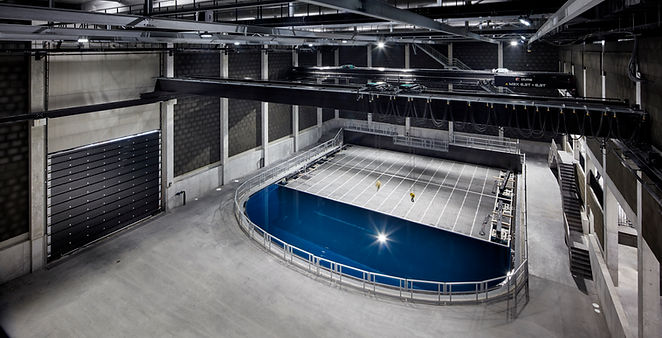

Water Tank  : 24 m x 21 m  - 79 ft x 69 ft

Tank Depth : 9 m - 30 ft

Max depth : 10 m  - 33 ft when flooding the studio floor

Max water surface when flooding the studio floor: 1.250 m² - 13.500 ft²

​

Waves up to 1m high in the tank or on the flooded floor

​

Moveable pool floor for dry set construction - up to 20T of set

can be submerged down to 8 meter, can be fixed on different dephts

​

Dual overhead cranes with 4 hoists can lift 25 T



Dual Lighting grid : 500kg rolling cats + 2T rigging points every 6m

Walkways between the 2 layers of the lighting grid



Crystal clear water & different water looks

Controlled by a unique water treatment system & over sized filtering



WATER FX :

Waves - up to 1 meter

Dump Tanks  with 18T of water, remote controlled

Water Cannons

Rain & water based mist

Wind



SKYLIGHT - DMX controlled.

32 softlights with Bi-colour & RGB LEDS. 1/4, 1/2 and full grid cloth, on 32 motors.

max soft light surface of 500m²: for ultra soft lighting above the water & underwater



Underwater infinity 'ocean blue'

XL blue / green screens & black backgrounds - Available for use underwater & at surface

​

XL entrance 7m x 7m for entrance of heavy truck/trailers

equipped with waterbarrier in front - to allow studio flooding & waves

​

STAGE DIMENSIONS :

Total studio surface : 1.450 m² - 15.600 ft²

Video village : 144 m² - 1.550 ft²

Tech floor : 180 m² - 2.000 ft²

Available height under the lighting grid : 14m - 46 ft

​

UW Cameras and all dry film cameras available on site

UW Lighting and all dry film lighting available

UW Crew available

water stage breaking suerface topshot.jp

SET "BREAKING SURFACE"

director : Joachim Heden

prod : Way Creative - Umedia

Lites_Studio_Photos_Updated (19 of 19).J
Uw opening.JPG

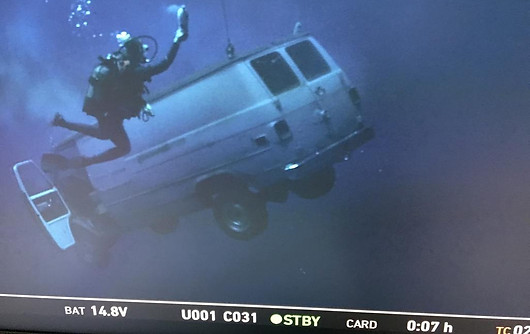

car underwater on monitor.JPG

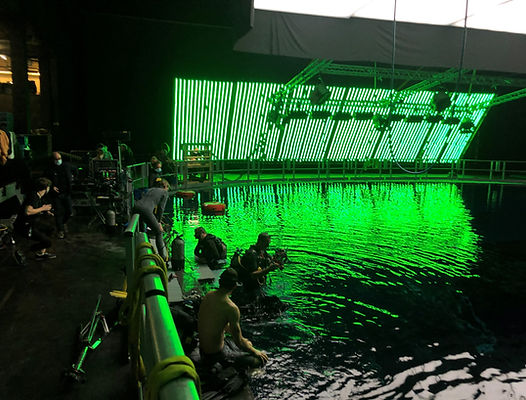

green water stage L.jpg
marco borsato underwater.jpg

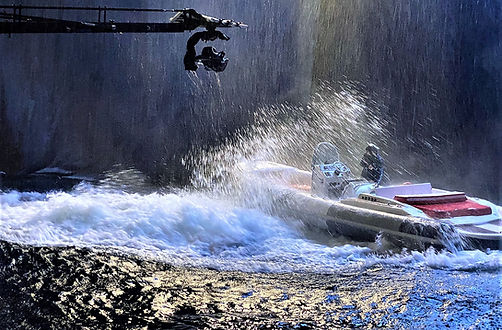

diavolo grad.jpg
waterstudio white infini 4.jpg

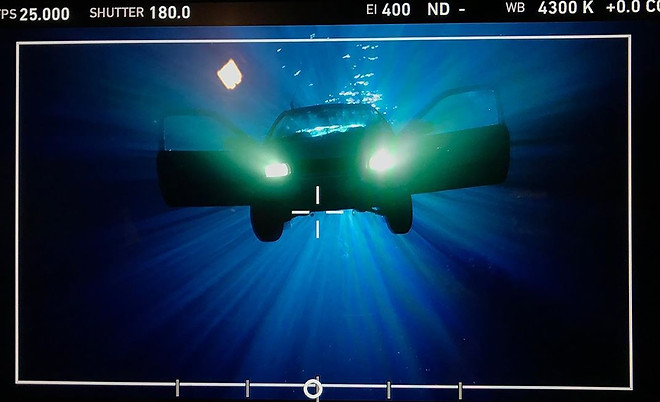

like me auto.jpg
